The articulating excavator bucket design allows for precise maneuvering in confined areas. You'll be able to reach around obstacles and work at challenging angles, making your compact loader more adaptable than ever before.

• Made In America with American Steel.
• This compact articulating loader bucket is ideal for loading feed mixers and other heavy-duty material handling equipment.
• 1/4" Thick Grade 50 steel body.
• 3/4" x 6" weld-on cutting edge with holes.
• The bucket bottom includes 5 wear bars for added durability.
• Bucket width from 72” to 96” with heaped capacity from 38.60 to 51.60.
• Weight: 970lbs to 1100lbs.
• Outside width up to 97.5”.
• Radius kick-out plate for added strength and easy clean-out.
• Reinforcement tube across back of bucket for added strength.
• that includes any product defects, including materials or welds.
• The (HD) Heavy Duty mounting package comes Standard on this Bucket. It Includes extra reinforcement along the back of the bucket and additional reinforcement to the mounting plate. This bucket is recommended for use with machines over 75 HP and all tracked machines.
• .

Options

All Options come installed when ordered with your bucket

• Bolt-On Cutting Edge

This Bucket comes equipped with a welded on cutting edge however with the double sided bolt-on cutting edge you can easily unbolt, flip, and re bolt in the removable cutting edge if it ever wears out. Reversible 3/4" x 8" Beveled Edge. Made from C-1080 High Carbon Steel.

Added Weight by Bucket Width:

• Bolt-On Rake Tooth Edge

Berlon's Rake Tooth Edge will bolt right on top of the bucket's welded on cutting edge to add versatility when breaking up and leveling soil. 3/4" x 8" Beveled Edge. Teeth approximately 4-1/2" Long & 2" Wide. Spaced approximately 1" between teeth. Made from C-1080 High Carbon Steel.

Added Weight by Bucket Width:

• Bolt-On Tooth Bar

Easily move from the weld on cutting edge to a toothed bucket with a bolt-on tooth bar. Fits over the standard weld on cutting edge on the bucket (Cannot be combined with Bolt-On Cutting Edge or Rake Tooth Edge). Heavy Duty shank fabricated with replaceable #23 teeth. Built in adjustment to pull bar tight to cutting edge.

Added Weight by Bucket Width:

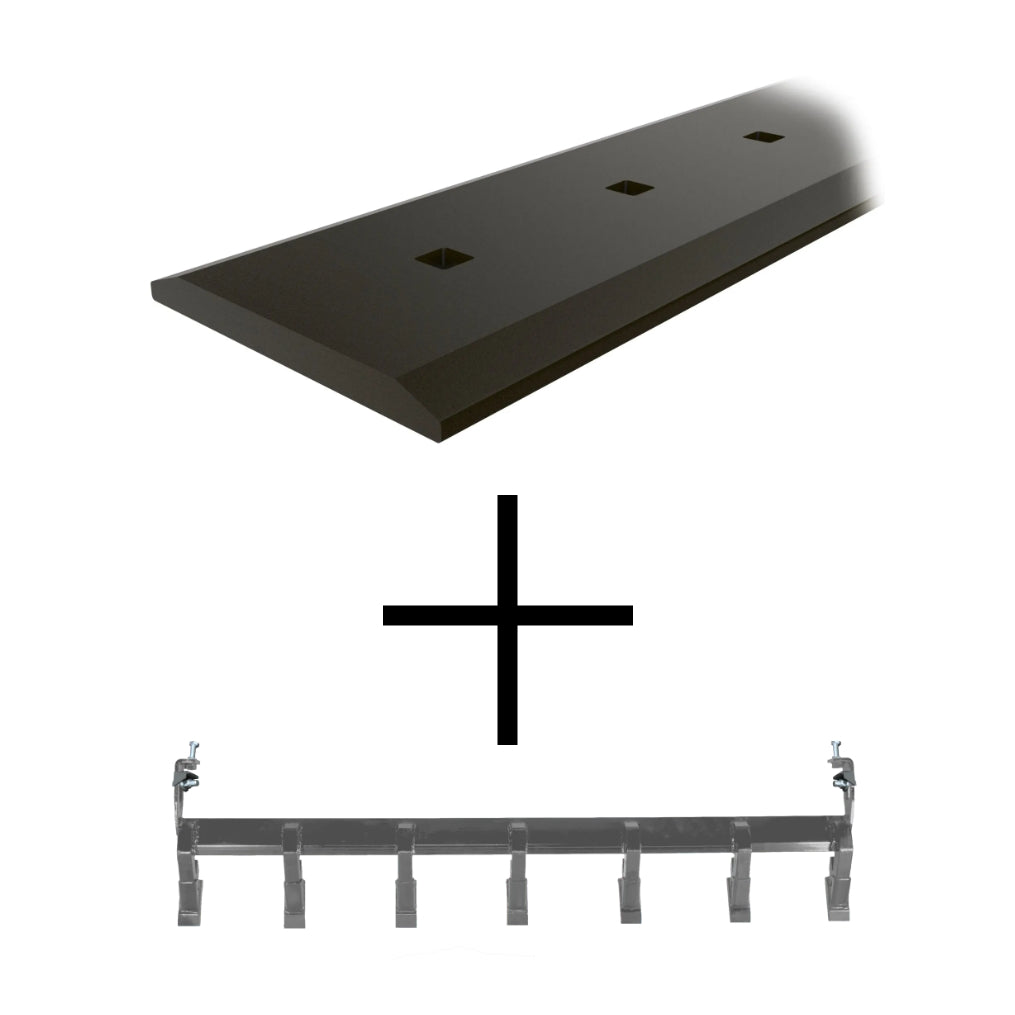

• Bolt-On Tooth Bar Over Bolt-On Cutting Edge

Get the best of both worlds with a bolt on cutting edge AND a bolt-on tooth bar. this option comes with the bolt-on cutting edge mentioned above, and a special bolt-on tooth bar that is designed to fit snuggly over the bolt-on cutting edge.

Added Weight by Bucket Width:

• Bolt-On Individual HD Teeth

There Bolt-On heavy duty teeth bolt directly onto the weld-on cutting edge of the bucket. Overall Length: 12" Usable Length: 5-1/2". The 72" Bucket will use 7 Teeth, the 78" and 84" will take 8 Teeth, and the 96" will use 10 Teeth.

Added Weight by Bucket Width:

Durable Construction for Long-Lasting Performance

Compared to a tilting bucket or a grading bucket that can tilt side-to-side typically to adjust the angle of the bucket for grading, leveling, or ditch cleaning, Berlon's hinged buckets operate for tasks requiring a wide range of motion, including precise material placement or working on confined spaces. Bucket width variants are from 72”, 78”, 84”, and 96” with ¾” x 6” weld-on cutting edge.

Now, our USA-made compact loaded buckets with ¼” thick grade 50 steel bodies are manufactured to withstand the toughest operation conditions. Crafted from high-quality materials, these attachments ensure longevity and reliability, saving you time and money on replacements and repairs after a rigorous digging task.

Why Choose HW Part Store for Your Articulating Bucket Needs

At HW Part Store, we take a unique approach to selling parts. Our team does extensive research on aftermarket options, ensuring you get the best value for your money. We guarantee that our products will fit your equipment and offer a warranty for your peace of mind. Our focus on customer service means we're always here to help, even if we don't have the exact part you need – we'll point you in the right direction.

Upgrade Your Compact Loader Today

Check our range of Berlon Compact Articulating Loader Buckets and experience the difference in productivity and efficiency. We offer guaranteed fit and excellent customer support so you can shop with confidence. Upgrade your compact loader's capabilities today and tackle any job with ease.

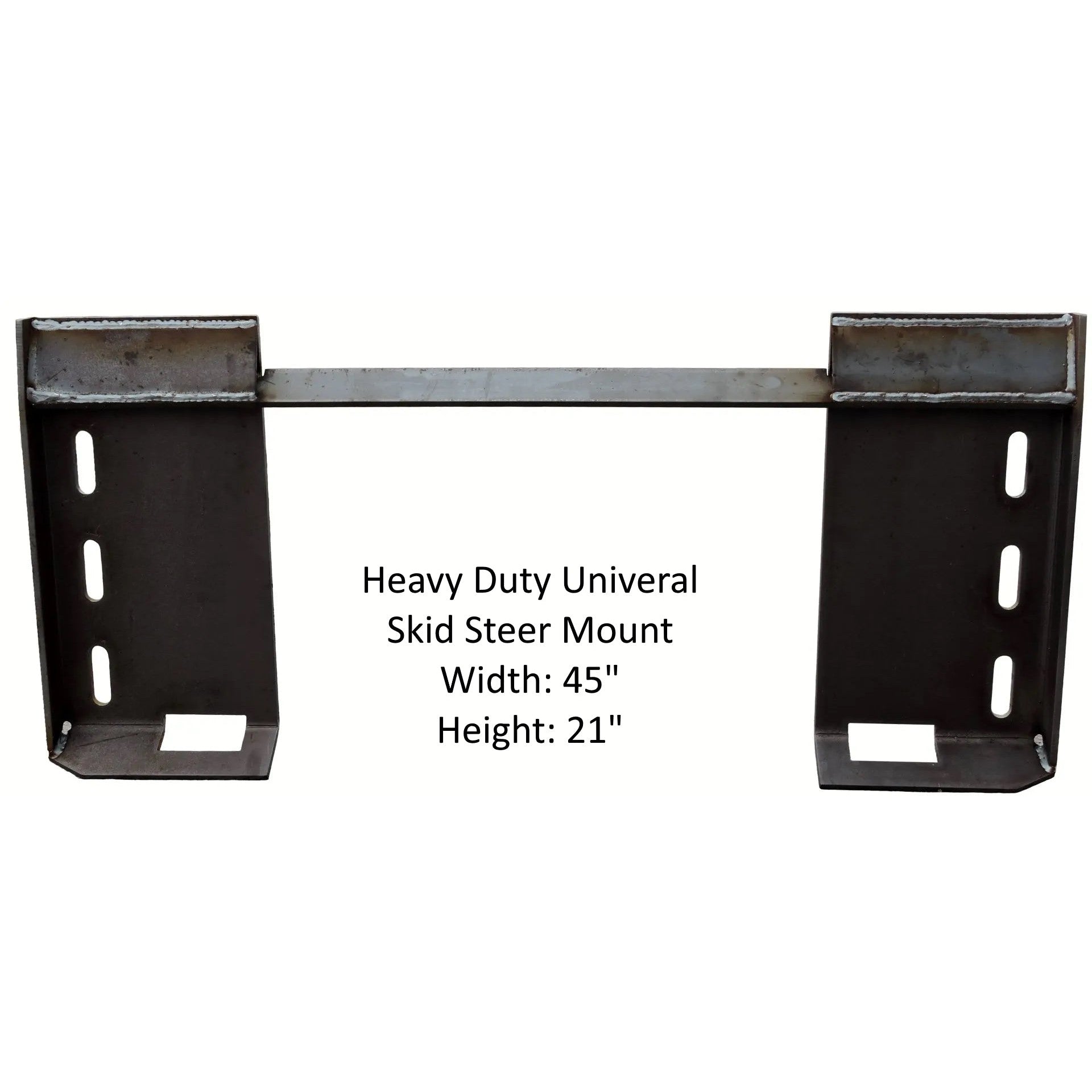

IMPORTANT NOTE: It comes equipped with a standard universal skid steer mounting Plate, but other mounting plate styles can be selected. Please confirm your mounting style prior to ordering, as it is not possible to change after they have been welded on. All mounting plate styles except the Universal Skid Steer Mount are considered custom orders and cannot be returned.
