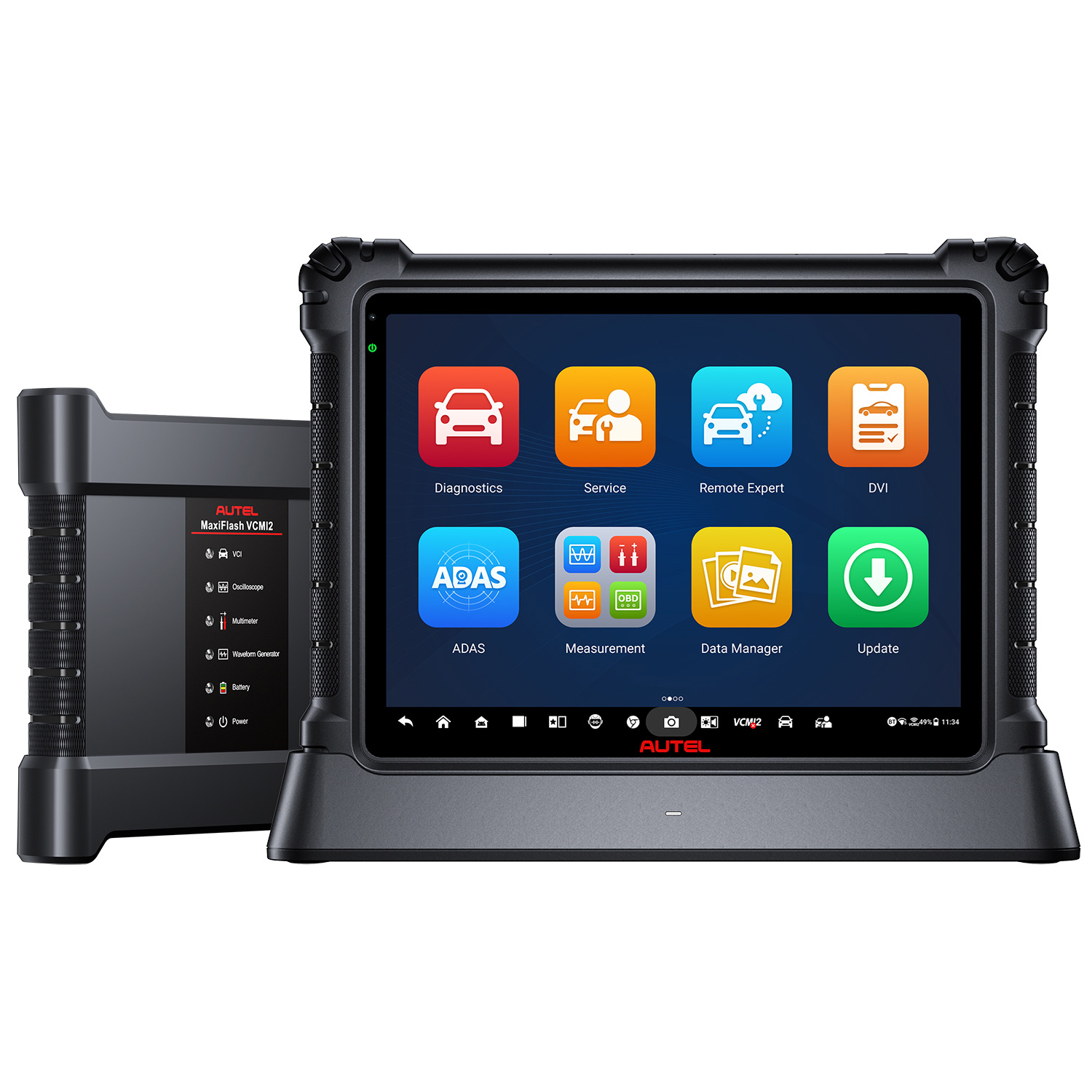

Built on its award-winning predecessor, the Autel MaxiSYS Ultra, the Ultra S2 sets a new benchmark for efficiency and accuracy with upgraded hardware and advanced diagnostic features that deliver near OEM-level diagnostics and service capability.

Autel MaxiSys Ultra S2 vs. MaxiSys Ultra

Here are the key differences between the MSUltra And the MSUltra S2:

Hardware Enhancements

• The Ultra S2 has a Faster Processor (2.7 GHz 8-Core) than the standard Ultra (2.3 GHz)
• The Ultra S2 has a larger 13.7" screen versus the 12.7" screen on the standard Ultra.
• The Ultra S2 has double the onboard storage (512GB) than the Ultra (256GB)
• The Ultra S2 supports WiFi 6 versus the standard Ultra which only supports Wi-Fi 5
• The Ultra S2 has an enhanced docking experience with Fast Charge
• The Utra S2 includes an enhanced 6-in1 VCMI 2 with Remote Expert in a lighter and smaller form than the standard VCMI

Software Enhancements

• Network Diagnostics: A key improvement in the Ultra S2 is its advanced network diagnostics capabilities. This update introduces features that assist in identifying communication problems between modules within a vehicle’s network. These enhancements are particularly valuable for diagnosing module-to-module communication issues, which are often difficult to detect using conventional tools.
• The topology map feature, originally introduced a few years ago, has been refined further. It now offers a detailed visualization of the vehicle’s network, illustrating how modules are connected and indicating the networks they communicate on.
• Terminating Resistor Values: The Ultra S2 supports the display of terminating resistor values for CAN networks. This functionality enables technicians to verify resistor values, which are essential for ensuring proper network communication.
• Ping Functionality: A revolutionary addition to the Ultra S2 is its capability to ping specific modules. This feature allows technicians to send signals to a module and wait for a response, similar to how network diagnostics operate in IT systems. By monitoring packet loss during the ping process, this function aids in identifying issues such as wiring faults, connector problems, or even module failures. This feature is particularly beneficial for live diagnostics, where technicians can adjust the wiring harness or reposition themselves around the vehicle while monitoring ping results to precisely locate faults.

Specs:

• Comprehensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with advanced diagnostics, including active tests, special functions, and coding and adaptations
• Topology 3.0: OE-Style System Analysis of Multi-Speed Communication Protocol Networks, Active Module and Network Analysis: Locate and Directly Ping ECUs to Test Signal Quality and Network Integrity
• Enhanced Oscilloscope: Launch Scope directly from Live Data; EV Tests, including AC/DC Charging, HV Component, Interlock Loop Signal, Power-On Ctrl, Resolver Sensor, and Thermal Management Sys; Added Parasitic Current Draw, Swing Tests
• Multi-point Digital Vehicle Inspection: AI-powered image analysis for auto-detection of dents and scratches; Pair with Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool to produce detailed tire analysis

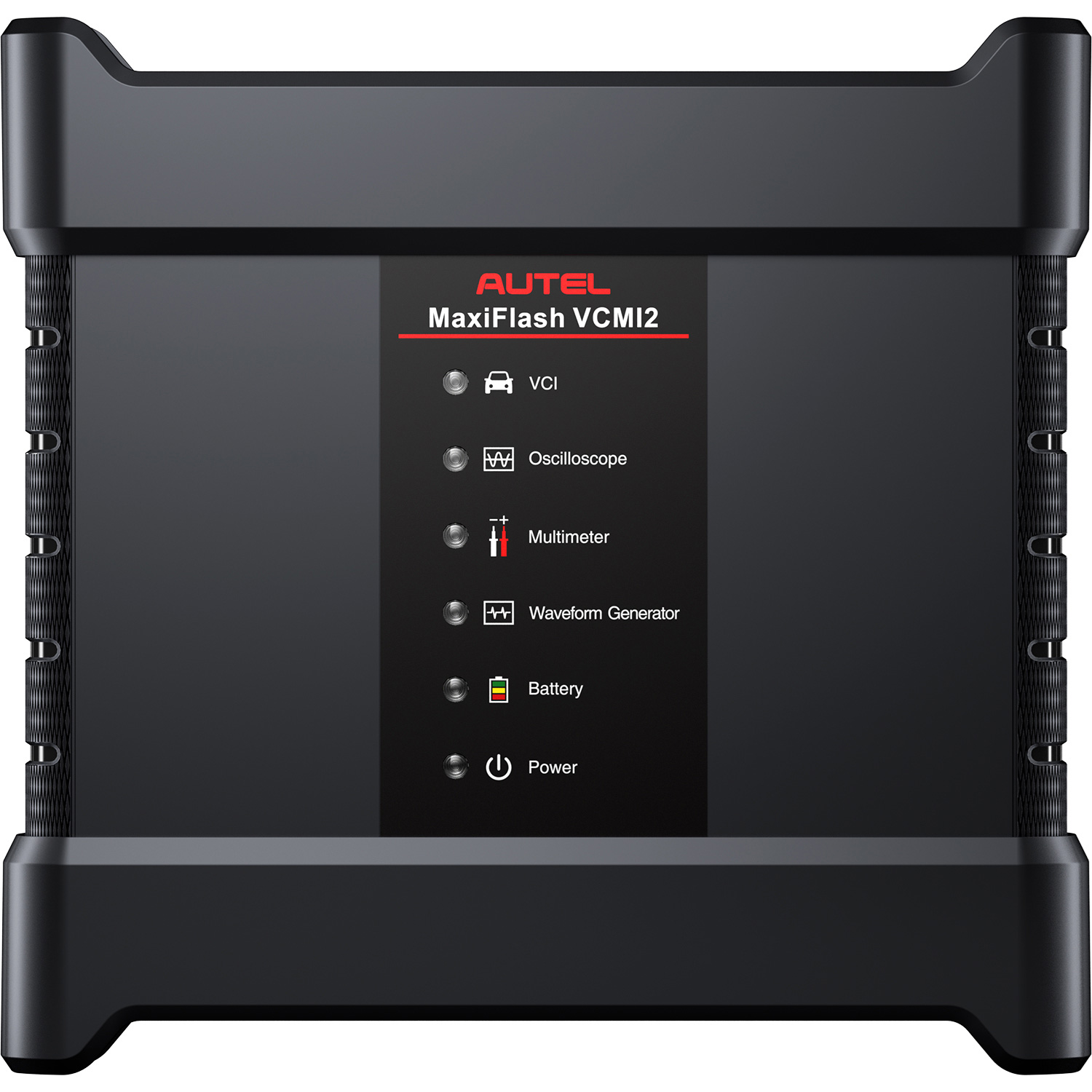

• Includes MaxiFlash VCMI2: an advanced VCI/J2534 pass-thru programmer, 4-channel Oscilloscope, Multimeter, Waveform generator, CAN-Bus Tester, and standalone Remote Expert device, all in a lighter, streamlined chassis
• Data Visualization: Enhanced graphing capability to visualize multiple parameters to identify the relationship between PIDs and pinpoint system anomalies
• Live Data Fusion: Record and compare value changes across multiple systems
• Parameter Grouping: Multi-PID selection for analyzing related parameters simultaneously
• Includes one-year free access to Motor TRUSPEED repair data
• Reference Sampling: Record, store, and review selected PIDs for pre- and post-repair comparison that will flag min, max, and average
• Service Menu features 48-plus maintenance and service tasks; direct access to commonly performed service functions and resets
• Hands-free navigation of the Ultra S2 interface with MAX, a virtual assistant
• Enhanced Docking Station with Tablet “Fast Charge”
• Includes one year of software updates
